Stainless Steel Double-Action Hinge self-closing and spring-loaded

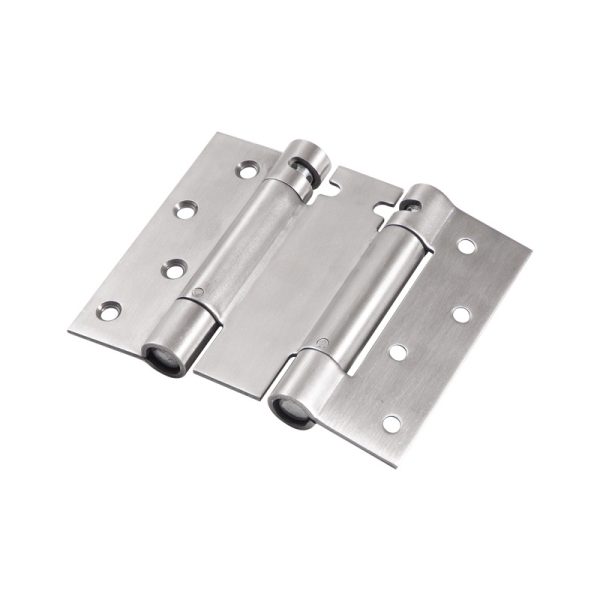

A stainless steel double-action hinge designed for doors requiring two-way swinging movement. The hinge features a flat mounting plate and dual pivot sections for double-action door operation.
| Product Type | Double-Action Hinge |
| Hinge Type | Double-Action |
| Overall Dimensions | 4 inches to 6 inches |
| Plate Thickness | 2.5mm to 3mm |

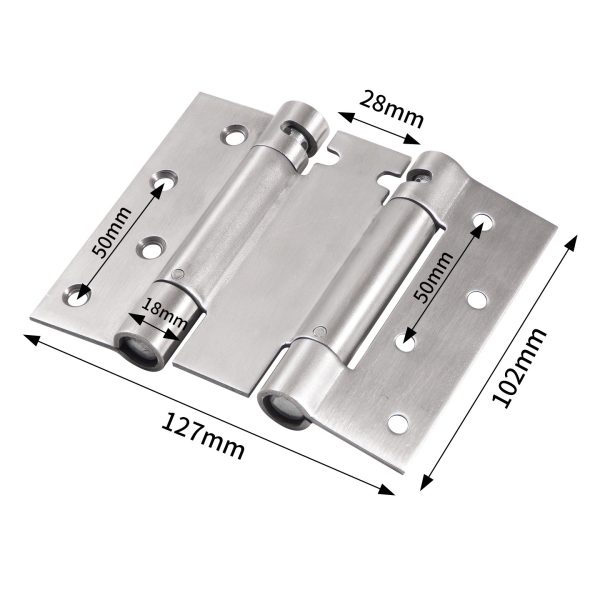

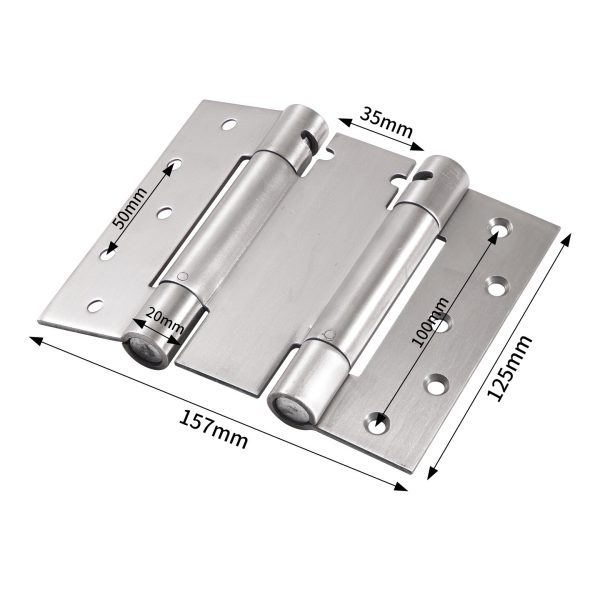

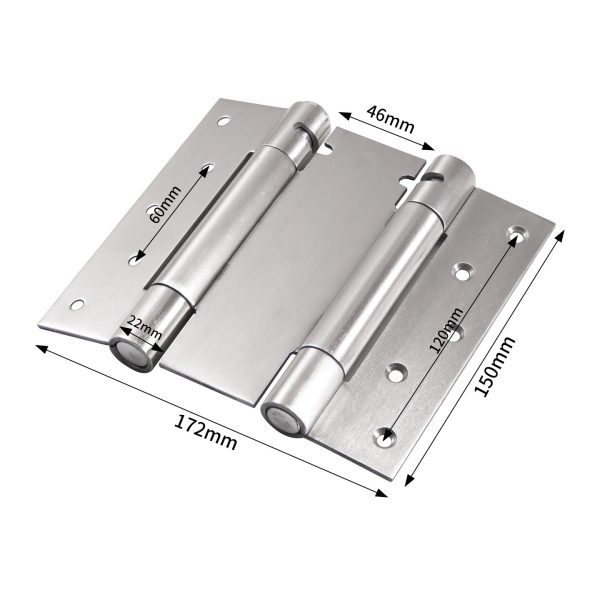

| Pivot / Barrel Diameter | Refer to drawing images |
| Opening Direction | Two-Way Swinging |
| Material | Stainless Steel |
| Material Grade | 201 or 304 |
| Finish | Custom Finish |
| Mounting | Screw Fixed |
| Spring / Closing Mechanism | Self-closing / Spring-load |
| Load Capacity | 15kgs to 30kgs / 2pcs |
| Door Thickness | 20mm to 50mm |
| Application | Doors |
