3D Adjustable Concealed Door Hinge

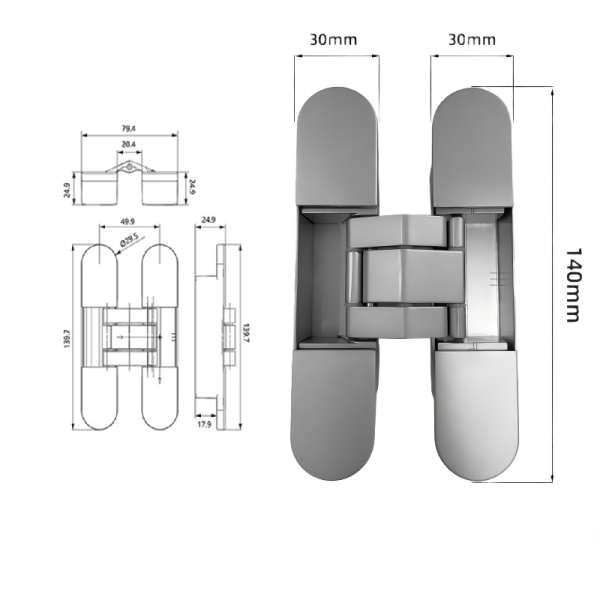

A concealed door hinge with a compact 3D adjustment structure, designed for concealed installation between the door leaf and frame. The hinge is made of zinc alloy and features concealed hinge leaves with a 30 mm visible leaf width.
| Product Type | 3D Adjustable Concealed Door Hinge |
| Installation Type | Concealed |
| Adjustment | 3D Adjustable |
| Material | Zinc Alloy |
| Finish | Custom Finish |
| Overall Length | 140 mm |
| Leaf Width | 30 mm per side |
| Overall Width | 79.4 mm |
| Hinge Body Width | 49.9 mm |
| Hinge Projection / Depth | 24.9 mm |
| Mounting Plate Height | 21.2 mm |
| Mounting Plate Thickness | 15.4 mm |
| Load Capacity | 60 kgs / 2 pcs |
| Recommended Door Thickness | Over 38mm |
| Door / Frame Application | Doors |
| Fixing Method | Screw Fixing |
